A lotion pump dispenses 1.0–2.0 ml per stroke for lotions, creams and cleansers, and 3.0–4.0 ml for body wash, shampoo and conditioner. We manufacture lotion pumps in 20/410, 24/410 and 28/410 neck finishes as part of the bottle set they ship with: one color reference, one sample round, one lead time, and a dip tube cut to the bottle it goes into.
A lotion pump draws a measured dose from the bottle each time the actuator is pressed. A piston pushes the product out through the actuator; a spring returns it, and a one-way ball valve lets product up into the pump body without letting it fall back. Every part is specified to the formula and to the bottle it ships on.
The standard specification, and what we tailor for each program. Output, neck finish, lock and dip tube are confirmed against your formula and your bottle at the sampling stage.
| Specification | Standard | Tailored per program |
|---|---|---|
| Neck finish | 20/41024/41028/410 | Matched to the bottle in the set |
| Output per stroke | 1.0–2.0 ml | 3.0–4.0 ml for body, hair and wash formats |
| Pump body and actuator | PP | PE, AS and ABS parts; PCR resin and mono-material builds |
| Lock | Left-right lock | Clip lock or screw-down lock |
| Dip tube | Cut to the bottle's internal height | For glass and plastic bottles alike |
| Collar finish | Molded color | Frosted, spray-coated, electroplated, anodized aluminum |
| Decoration | — | Screen printing and hot stamping |
| MOQ | 10,000 units per SKU on existing molds | Full-custom tooling quoted per project |
Output is the specification customers notice first: too little and they press three times, too much and the product runs over the hand. A 1.0 ml output usually pairs with a smaller neck such as 24/410; a 4.0 ml output needs a wider neck such as 28/410.
Face lotions and light formulas, where one or two presses cover the face.
The standard dose for a full face or hand application, and for cleansing oils.
High-output pumps for body lotion and wash-off formats that cover a large area.
Bottle size
Output per stroke
Presses = fill volume ÷ output per stroke. A dip-tube pump leaves a small residue at the base of the bottle.
Presses per bottle
Every output option for the selected bottle:
The lock decides how the pump behaves between the filling line and the first press: on a retail shelf, in a courier box, or in a travel bag.
The actuator turns 90 degrees to open and turns back to lock. Clean-looking and easy to re-lock for travel.
A plastic clip around the neck physically stops the actuator being pressed, and is removed before first use. It doubles as a visible sign the pump has not been used.
The actuator is pressed down and screwed tight to the collar. A compact, secure position for shipping and travel.
Direct-to-consumer, shipped by courier: we recommend a clip lock or a screw-down lock.
Retail, picked off a shelf: a left-right lock keeps the pump clean-looking and easy to use.
Industry guidance reserves standard lotion pumps for products under roughly 20,000 cP: lotions, light creams, cleansers, shampoos and body washes. Above that, the dispenser changes.
Viscosity guide, centipoise (cP), logarithmic scale
Lotions, light creams, cleansers, shampoos and body washes: the standard lotion pump.
Heavier creams and balms suit an airless system, with no dip tube to draw through.
Airless bottlesThe thickest butters and balms belong in a jar, scooped rather than pumped.
Face cream jarsThe reverse matters too: a thin liquid in an oversized pump can spurt, so output is matched to the formula as well as the format. Send us the formula and we size the pump against the real product during sampling. The full guide is on our pumps page.
A dip tube that is too short leaves product the pump cannot reach; one that is too long kinks against the base. We cut the dip tube to the internal height of the specific bottle in the set, not to a generic length.
In a tall bottle it is cut to reach and rest against the bottom edge; in a short bottle it stops about 2 mm above the base. It is one of the reasons we specify the pump and the bottle together.

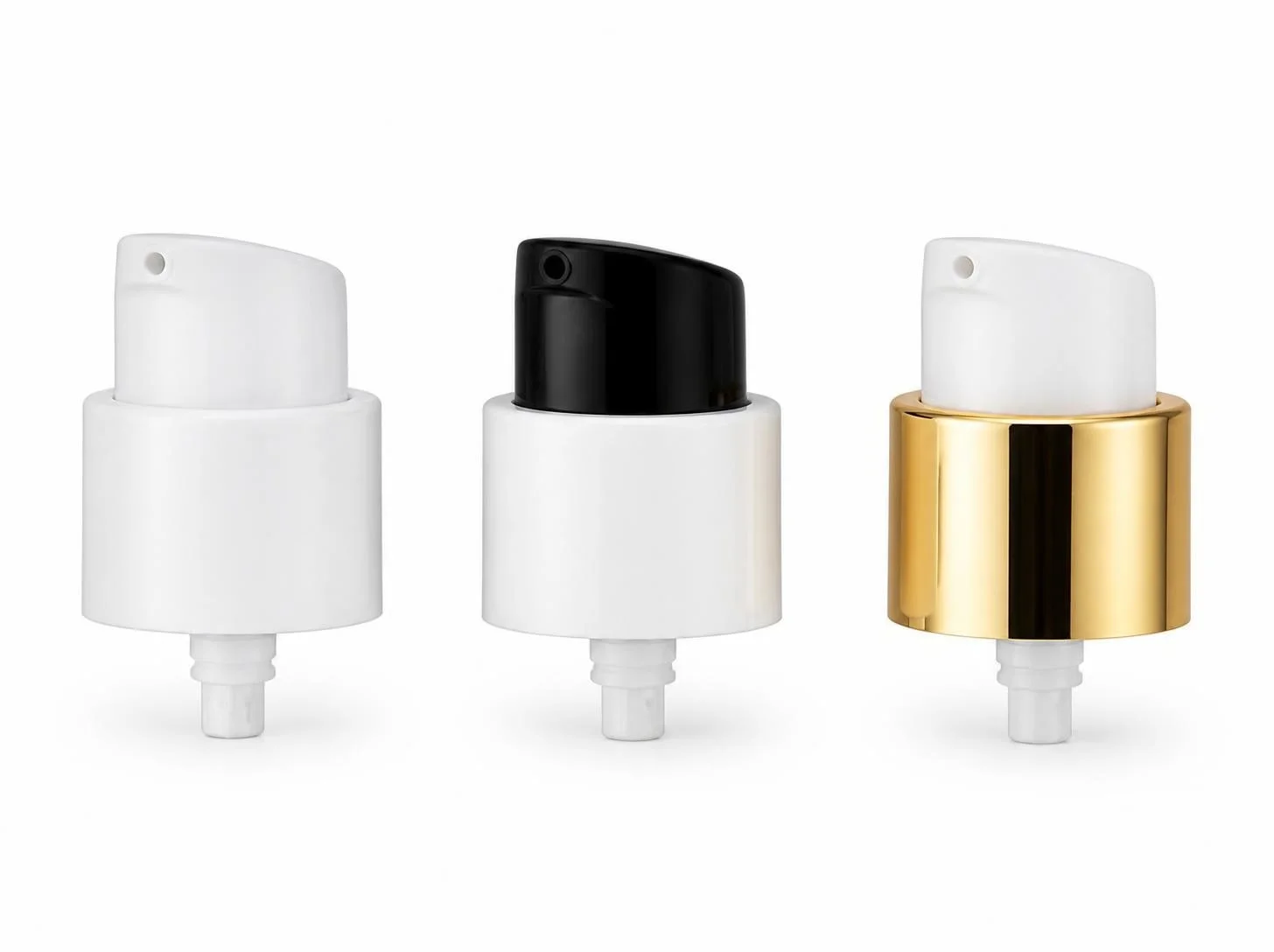

The actuator and collar are the most visible part of a lotion bottle, and every surface on them can be specified, matched to the bottle they ship with.
Discuss your color and finishChoose a finish
Actuator, collar and overcap matched to the bottle from a physical color sample, so the set reads as one set under store lighting.
Production, 10,000 sets 30 days for custom-color pump headsA matte, soft-touch surface on the collar or the bottle.
Frosting adds 5–7 days at samplingColors and gradients across the collar and the bottle, run on our own spraying lines.
Production, 10,000 sets 30 daysChrome, gold, rose gold or brushed collars, matched from a physical sample.
Production, 10,000 sets 35 days for electroplated capsAn aluminum shell over the collar, anodized in color, for a true metal surface on the closure.
Production, 10,000 sets 45 days for anodized aluminum capsLogos and copy printed or foil-stamped onto the bottle and the collar, from vector artwork built to the product's actual dimensions.
Printing on caps adds 3–4 days at samplingChanges are made on existing tooling, drawn from more than 30,000 ready-to-use molds.
A tooling project: our in-house Mold Manufacturing Center builds a steel mold in 35–40 days.
Where recyclability is part of the brief, a lotion pump can be specified with PCR resin and in a mono-material build. A conventional lotion pump combines several plastics with a stainless steel spring and a glass ball; a mono-material design replaces the spring with a plastic one, so the whole pump belongs to a single material family.
Pair it with a PCR bottle for a set designed for recycling from the start. The route is specified per project, against your formula and your target market.
Standard lead times for lotion pumps, counted in days from receipt of vector artwork and payment. Your quotation confirms the timeline for your specification.
Request a timeline for your projectFull-custom tooling is quoted per project. Production files: vector artwork in AI or PDF format, plus Pantone references or physical color samples.
Sampling
Production, 10,000 sets
Tooling and shipping
The questions buyers ask most before they specify a lotion pump. If yours is not here, send it with your formula and we will answer it against the real product.
Ask about your lotion pumpA standard lotion pump dispenses 1.0–2.0 ml per stroke, the dose for face creams, hand lotions and sunscreens. High-output lotion pumps dispense 3.0–4.0 ml for body wash, shampoo, conditioner and body lotion. We confirm the output against your actual formula during sampling.
The neck finish follows the bottle and the output. A 1.0–2.0 ml pump usually sits on a 20/410 or 24/410 neck; a 3.0–4.0 ml pump for body and hair care needs a wider neck such as 28/410. The diameter and the thread must both match the bottle exactly.
Up to a point. Industry guidance reserves standard lotion pumps for products under roughly 20,000 cP. Heavier creams and balms, from about 30,000 cP upward, suit an airless system rated to around 80,000 cP, and the thickest butters belong in a jar. Send us the formula and we will size the pump against it.
A left-right lock turns 90 degrees to open and close, and suits retail shelves. A clip lock uses a removable plastic clip that stops the actuator being pressed, the most secure option for courier shipping. A screw-down lock screws the pressed actuator tight to the collar for shipping and travel.
Yes. The actuator and collar are matched to the bottle from a physical color sample, and the collar can be frosted, spray-coated, electroplated in chrome, gold, rose gold or brushed, or finished in anodized aluminum.
Yes. A lotion pump can be specified with PCR resin and in a mono-material build, where a plastic spring replaces the stainless steel one so the whole pump belongs to a single material family. The route is specified per project, against your formula and target market.
MOQ is 10,000 units per SKU on existing molds. A pump head sample takes 15–18 days in a stock color and 15–25 days in a specified color; production of 10,000 custom-color pump heads takes 30 days, counted from receipt of vector artwork and payment. Sea freight adds 35–40 days.
